LED Videowall

LED Videowall

Our LED modules have pixel pitches of just 1.29 mm, 1.9 mm, and 2.6 mm.
They impress with their color accuracy, contrast, and brightness.
The lightweight LED modules are ideal for LED indoor applications. Because of the led panels square construction you can plan highly individual design forms of your video wall.
Each module offers a resolution of 192 x 192, 256 x 256, or 384 x 384 pixels. The viewing angle for the modules—and the resulting LED walls—is 140°/160°, and the modules are rated IP30.

Additionally, the INFILED XII modules, which can be bent up to 30°, enable the creation of curved or circular LED walls.

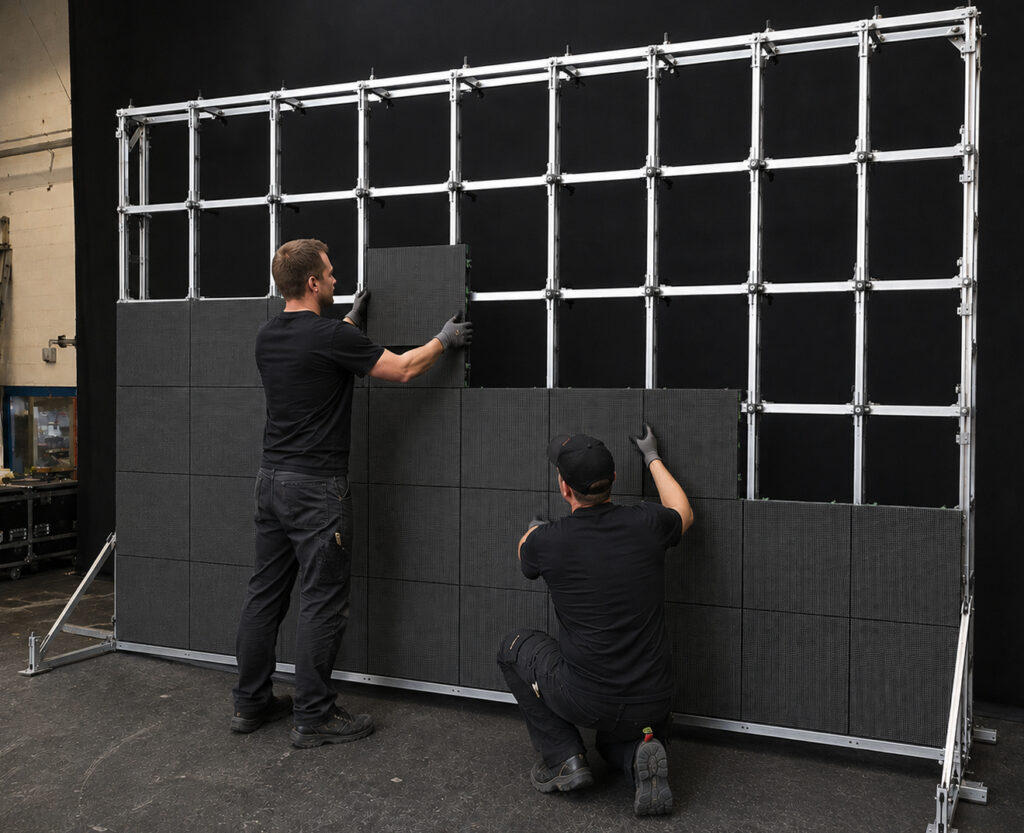

Our brand-new RM modules, featuring a 1.29 mm pixel pitch and a resolution of 384 x 384 pixels, can be easily installed into beMatrix and Aluvision frames.

Technical specifications RM P 1.29 indoor:

Pixel pitch: 1,95 mm
Physical Density: 599.076 Pixel/m²
Module resolution: 384×384 pixels
Module dimensions: 496x496x55mm / 62mm
Modul weight 9,3kg
Maximum energy consumption: 600w / sqm
Average energy consumption: 150w / sqm
Viewing angle: 160 ° / 160 °
Operating power supply: AC100-240V
Refresh Rate 3.840Hz-7680 Hz
Protection Classification: IP30 IP30
Certification: CE, EMC, TUV-EMC, FCC, ETL, PSE, CCC, RoHS

Technical specifications INFiLED 1.9 DB MK2 indoor:

Pixel pitch: 1.95mm
Physical Density: 262.144pixels / m?
Module resolution: 256/256 pixels
Module dimensions: 500 /500 / 76mm
Module weight: 8,0kg
Brightness 1000 – 1200 nits
Maximum energy consumption: 600w / sqm
Average energy consumption: 150w / sqm
Viewing angle: 160 ° / 160 °
Operating power supply: AC100-240V 50-60Hz
Operating temperature: -10 ° ~ + 45 °
Refresh Rate: 7680
Protection Classification IP30
Signal input sources: DVI, HDMI, DP, SDI
Certification: CE, ETL, FCC, RoHSL

curve range -5° – +5°; Corner modules available

Technical specifications INFiLED 2.6 DB indoor:

Pixel pitch: 2.6mm
Physical Density: 147,456pixels / m?
Module resolution: 192 / 192pixels
Module dimensions: 500 /500 / 75,5mm
Module weight: 8,8kg
Brightness 1000 ~ 1,200nits
Maximum energy consumption: 600w / sqm
Average energy consumption: 200w / sqm
Viewing angle: 160 ° / 160 °
Operating power supply: AC110-240V 50-60Hz
Operating temperature: -10 ° ~ + 45 °
Refresh Rate: 3840
Protection Classification IP30
Signal input sources:,S-Video, VGA, DVI, HDMI, SDI,
Certification: CE, EMC, LVD, UL

curve range -5° – +5°; Corner modules available:

Die Module können um 5 Grad gedreht werden, so dass eine gebogene (curved) Videowand realisierbar ist:

Technical specifications INFiLED 2.6 XII indoor:

Pixel pitch: 2.6mm
Physical Density: 147,456pixels / m?
Module resolution: 192/192 pixels
Module dimensions: 500 /500 / 76mm
Module weight: 8,3kg
Brightness 1,200nits
Maximum energy consumption: 540w / sqm
Average energy consumption: 180w / sqm
Viewing angle: 160 ° / 160 °
Operating power supply: AC110-240V 50-60HzOperating temperature: -10 ° ~ + 45 °
Refresh Rate: 3840
Protection Classification IP30
Signal input sources:,S-Video, VGA, DVI, HDMI, SDI,
Certification: CE, ETL, FCC, RoHSL

Tiltable up to ±30° in seven angle settings (30°, 20°, 10°, 0°, -10°, -20°, -30°)
